Large Detecting Area Microwave Motion Sensor for warehouse 12m mounting height
1. Features
1) Built-in motion sensor and daylight sensor for intelligent control
2) Low impedance sensor antenna patent helps anti-interference of kinds of wireless signals like 5G, Wi-Fi, Bluetooth, etc.
3) Parameters can be set by remote control MH10
4) Elongated Induction area with a farthest detecting radius of 15m
5) 3-12m installation height
6) RED certification for mass production
7) Independent surface mounting
| Input | Operating Voltage Rage | 12/24V DC |
| Working current | 55mA±5mA |
| Surge Test | N/A |
| Output | Working Mode | ON/OFF function |
| Type of Load | Inductive or Resistive Load |
| Load Capacity | 800W (Resistive), 400w(Inductive) |
| Max. Surge Capacity | 50A (50% Ipeak, twidth =500uS@230Vac full load, cold start); |
| Sensor Parameters | Operating Frequency | 5.8 GHz ±75 MHz,ISM Band. |
| Transmitting Power | 3mW Max. |
| Hold Time | 5S/30S/1Min/3Min/5Min/10Min/20Min/30Min |
| Detection Area | 100%/75%/50%/25% |
| Daylight Sensor | 5lux/15lux/30lux/50lux/100lux/150lux/Disable |
| Detecting Area | 15*6m Max |
| Mounting Height | 12m Max |
| Detecting Angle | 80° |
| Operating Environment | Operating Temperature | -20℃…+60℃ |
| Storage Temperature | Temperature: -40℃…+80℃; Humidity: 10%-95% (non-condensing) |
| Certificate Standards | Safety Standards | EN61058-1,EN61058-1-2 |
| EMC Standards | EN300440; EN301489-1; EN55015; EN61547; EN61000-3-2; EN61000-3-3; EN62479 |
| Environmental Requirement | Compliant to RoHS |
| Certificate | Compliant to CE |
| Others | Wiring | screw type terminals, wire diameter: 1.5-4mm2 |
| IP Rating | IP20 |
| Protection Class | Class II |
| Dimension | 110*110*32mm |
| Package | White box+ White box tags+ Clapboard+ Carton(K=A) |
| Lifetime | 5 years warranty @Ta 230V full load |
| Note 1. Detection area is effected on volume of motion object and motion speed. The detection area is tested by a 165cm height person and walking speed is 0.5m/s. |
2. Function
3. Dimension

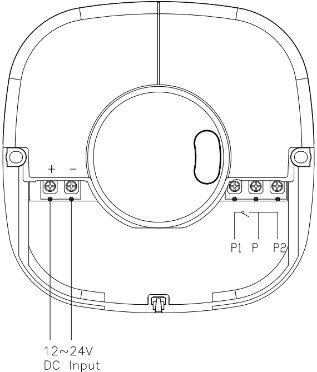

4. Wiring
5. Structure
6. Detection Area
7. Remote Control
8. Initialization
After first power on, the light turns on and closes after 10 seconds. During the initialization, sensor is not able to detect moving objects signal.
9. Factory Settings
Detection Area: 100% Hold Time: 5s Daylight Sensor: Disable Indicator light: Close
10. Application Notice
1) The sensor should be installed by a professional electrician. Please disconnect the power before installing, wiring or changing the setting of the DIP switch.
2) It is recommended that each unit should be separated by more than 1m when installing multiple units.
3) Put the sensor as far as possible from large areas of metal plate, glass and other materials with high medium density to avoid triggering by mistake.
4) Avoid using objects that have been vibrating for a long time around the sensor, such as shaking fans, etc. The vibration signal will be regarded as the motion signal to trigger the sensor.
