24GHz FMCW microwave presence detectors with surface mounting and 5 years warranty
1. Features
1) Exclusive Merrytek Lifebeing Presence Detection
2) FMCW modulation technology applied to detect micro movement brought by breathing
3) Germany RF technology applied for a 5-year guarantee assurance
4) PUSH button on/off or dimming control available
5) Relay max loading capacity:800w resistive loading and 400w inductive loading & LED
6) Sensor parameter adjustable by DIP switch or remote
7) 5 years warranty period
2. Parameters
| Input/Output | Input voltage | 100-240V AC 50-60Hz |
| Rated voltage | 220V AC |
| Working current | 50mA max |
| Consumption | ≤1W 230V DC |
| Max surge | 1KV(L/N,EN61000-4-5) |
| Output signal | 1 channel ON/OFF(Max 800w resistive loading and 400w inductive loading)+1 channel push control |
| Max surge current | 16A relay 30A(test by 50% Ipeak and twidth 500us @230Vac by full loading from cold boot 60A(test by 50% Ipeak and twidth 200us @230Vac by full loading from cold boot |
| Sensor Parameter | Radar frequency | 24GHz-24.25GHz ISM band |
| Transmitting Power | 5mW Max |
| Detection Area | Remote/Dip setting: 0-4m |
| Hold Time | Remote/Dip setting: 10s-30min Remark: presence detection will be available only when the hold time is set >30s |
| QS1+100% detection range radius | major/minor/micro-movement(3m height installation): 3.5±0.5m(based on 41㎡ open area test and might change due to different space) |
| Daylight sensor threshold | 5-150lux/Disable |
| Sensitivity | High/Medium/Low |
| Remote control | Available |
| Mounting height | 2.5-4.0m typical value:3m |
| 3dB beam angle | 100°(XZ) |
| 100°(YZ) |
| Application Environment | Installation | Ceiling mounting |
| Working temperature | 0℃...+50℃ |
| Storage temperature | -40℃~+80℃ |
| Warranty | 3 years(available due to product quality problem under indoor application) |
| Certificate Standard | Certificate | Compliant to CE |
| Environmental requirements | Compliant to RoHS |
| IP rating | IP20 |
| “N/A” means not available |
3. Dimension

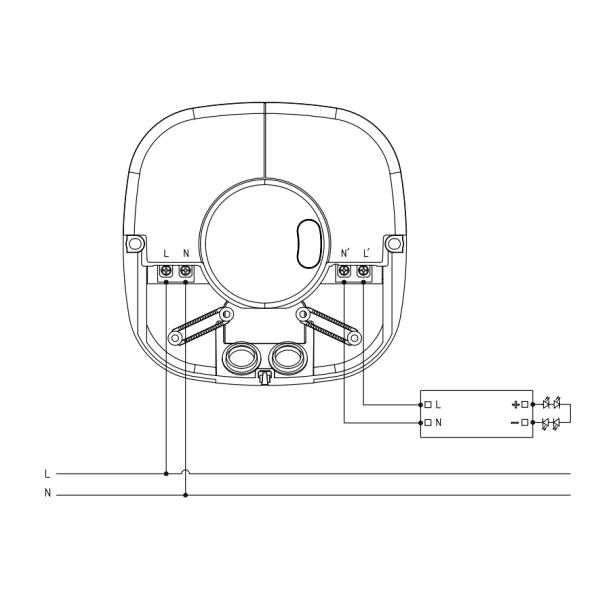

4. Wiring Diagram
5. Detection radiation
6. Detection Signal
The product detects human moving, minor moving, and presence signals, and realizes the detection of human-existing/no-human in non-sleep state. The following is a description of the moving, minor moving and presence signals:
l Major movement: detect the human significant moving (walking) in the detection area.
l Minor movement: detect the human slight movement in the detection area, such as leaning forward, leaning forward and back, swinging limbs, shaking head, typing, playing with mobile phones, and so on.
l Micro movement: detect human abdominal and thoracic expansion behaviors caused by breathing but do not detect moving signals or minor moving signals.
7. DIP SWITCH SETTING
Detection Area
| | 1 | 2 | 3 | |
| Ⅰ | ON | ON | ON | 4m |
| Ⅱ | - | ON | 3.5m |
| Ⅲ | ON | - | - | 3m |
| Ⅳ | - | - | 2.5m |
| V | ON | ON | - | 2m |
| VI | - | ON | 1.5m |
| VII | ON | - | ON | 1m |
| VIII | - | - | 0.5m |
Hold Time
| | 4 | 5 | 6 | 7 | |
| Ⅰ | ON | ON | ON | ON | 10S |
| Ⅱ | ON | - | ON | ON | 30S |
| Ⅲ | ON | ON | - | ON | 1min |
| Ⅳ | ON | ON | ON | - | 3min |
| Ⅴ | ON | ON | - | - | 5min |
| Ⅵ | - | - | ON | ON | 10min |
| Ⅶ | - | - | - | - | 30min |
Daylight sensor
| 8 | 9 | |
| ON | ON | 5Lux |
| - | ON | 50Lux |
| ON | - | 150Lux |
| - | - | Disable |
8. Remote Manual MH18
For more information, please get in touch with our sales rep. for more details.
|
|
